LINS630 High precision inertial measurement unit

Range:Accelerometer ± 20g，Gyroscope ± 450°/s Zero bias instability：Accelerometer 15μg，Gyroscope 0.5°/h

关键词:

Category:

Six-Axis

key word: LINS630 High precision inertial measurement unit

E-mail:

fox.zhao@lins-tech.com

Inquiry

Details

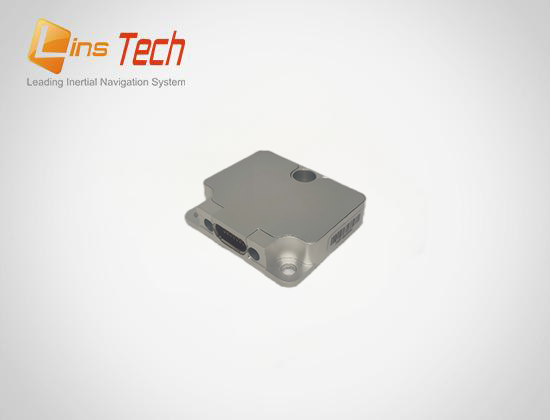

LINS630 IMU is an inertial measurement unit (IMU) independently developed by LINS Technology, based on micro-electromechanical systems (MEMS) technology. It features high-performance, built-in triaxial MEMS gyroscopes and triaxial MEMS accelerometers, supporting the output of angular velocity and acceleration. The LINS630 boasts high reliability and strong environmental adaptability, having passed the most rigorous tests and demonstrating exceptional performance in noise, zero bias instability, non-linearity, and temperature drift. The product can be widely applied in intelligent driving, engineering fields, civil and special-purpose unmanned aerial vehicles (UAVs), automated guided vehicles (AGVs), railways, dynamic communication on the move, personnel navigation, and other areas.

Main features:

Three axis gyroscope with a range of ± 450 °/s

Three axis accelerometer, range ± 20g

Bandwidth：268Hz

Temperature compensation range: -40 ° C to+85 ° C

RS422 communication interface

Small size：38.6±0.1*44.8±0.1*10.8±0.1mm
