LINS-F500 Three-axis FOG with Acc zero bias stability: 0.1 m g
关键词:
Category:
key word: LINS-F500 Three-axis FOG with Acc zero bias stability: 0.1 m g
Details
LINS-F500 optical fiber inertial measurement unit is designed for the needs of medium precision application background, using unique three-axis common technology design, low cost, stable performance; in the structure, optical path and circuit are integrated packaging, simple structure, easy installation, fast start, wide measurement range and high reliability and other advantages. In addition, it has three high precision quartz accelerometers built in, which can accurately measure the three-axis acceleration information and three-axis angular velocity information of the carrier, and output it at high speed and stably through RS-422 serial port. It can be used in the attitude measurement and control of various vehicles and planes.
Main features
√ 12 step quality control, super reliable, with more features
√ Using original branded parts, high-quality materials, and competitive prices
√ True and accurate after calibration, with perfect performance
√ Successful applications in dozens of fields, with over 1000 customers currently using them
▪ Gyroscopic range: ±500°/s
▪ Gyroscopic zero bias stability: less than 0.05°/h
▪ Acceleration measurement range: ±30g
▪ Accelerationometer zero bias stability: 0.06 m g
▪ Size: 100.0 x 100.0 x 95.0 (mm)
▪ Weight: 1200g
▪ Working temperature: -40°C~+65°C
Typical applications

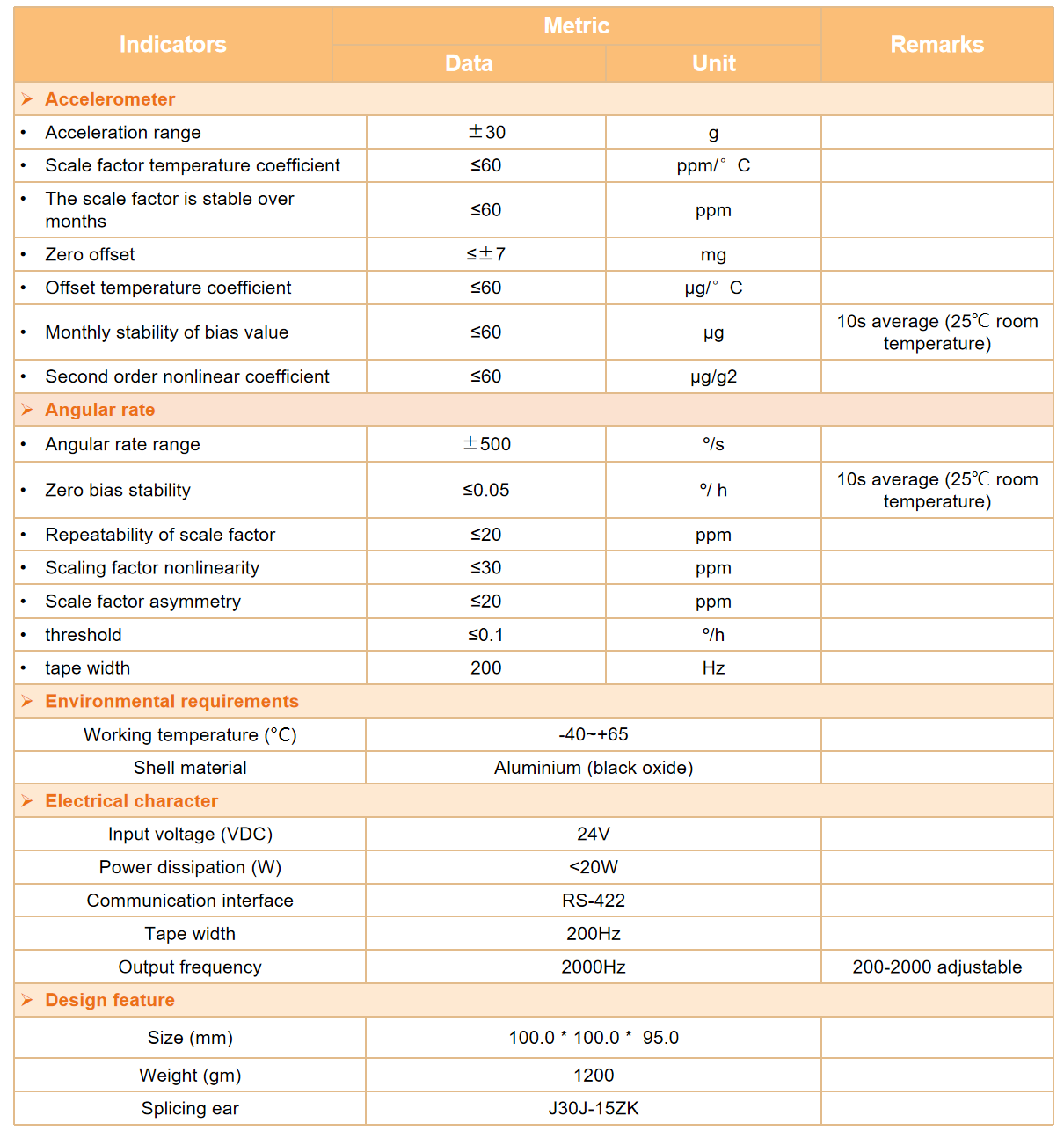

Parameters
