LINS-F400 Three-axis FOG with Acc zero bias stability: 0.1 m g
关键词:
Category:
key word: LINS-F400 Three-axis FOG with Acc zero bias stability: 0.1 m g
Details
LINS-F400 optical fiber inertial measurement unit is designed for the needs of medium precision application background, using unique three-axis common technology design, low cost, stable performance; in terms of structure, the optical path and circuit are integrated packaging, simple structure, easy installation, fast start, wide measurement range and high reliability. In addition, it has three high-precision quartz accelerometers built in, which can accurately measure the three-axis acceleration information and three-axis angular velocity information of the carrier, and output at high speed and stably through RS-422 serial port. It can be used in the attitude measurement and control of various vehicles and planes.
Main features
√ 12 step quality control, super reliable, with more features
√ Using original branded parts, high-quality materials, and competitive prices
√ True and accurate after calibration, with perfect performance
√ Successful applications in dozens of fields, with over 1000 customers currently using them
▪ Gyroscopic range: ±500°/s
▪ Gyroscopic zero bias stability ≤ 0.1°/h
▪ Acceleration measurement range: ±30g
▪ Accelerationometer zero bias stability: 0.1 m g
▪ Size: 90.0 x 90.0 x 78.0 (mm)
▪ Weight: 900 g
▪ Working temperature: -40°C~+65°C

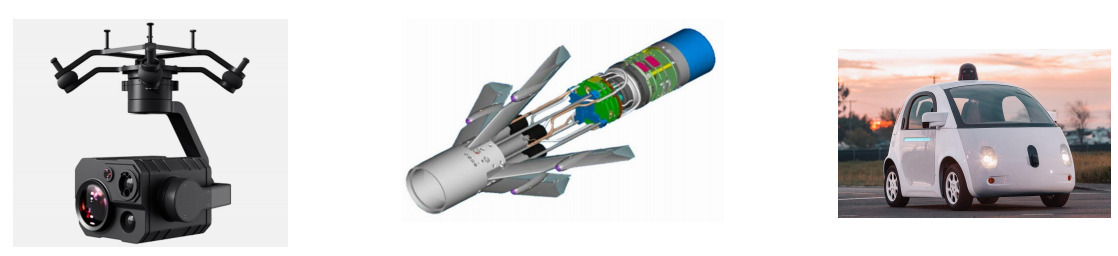

Typical applications

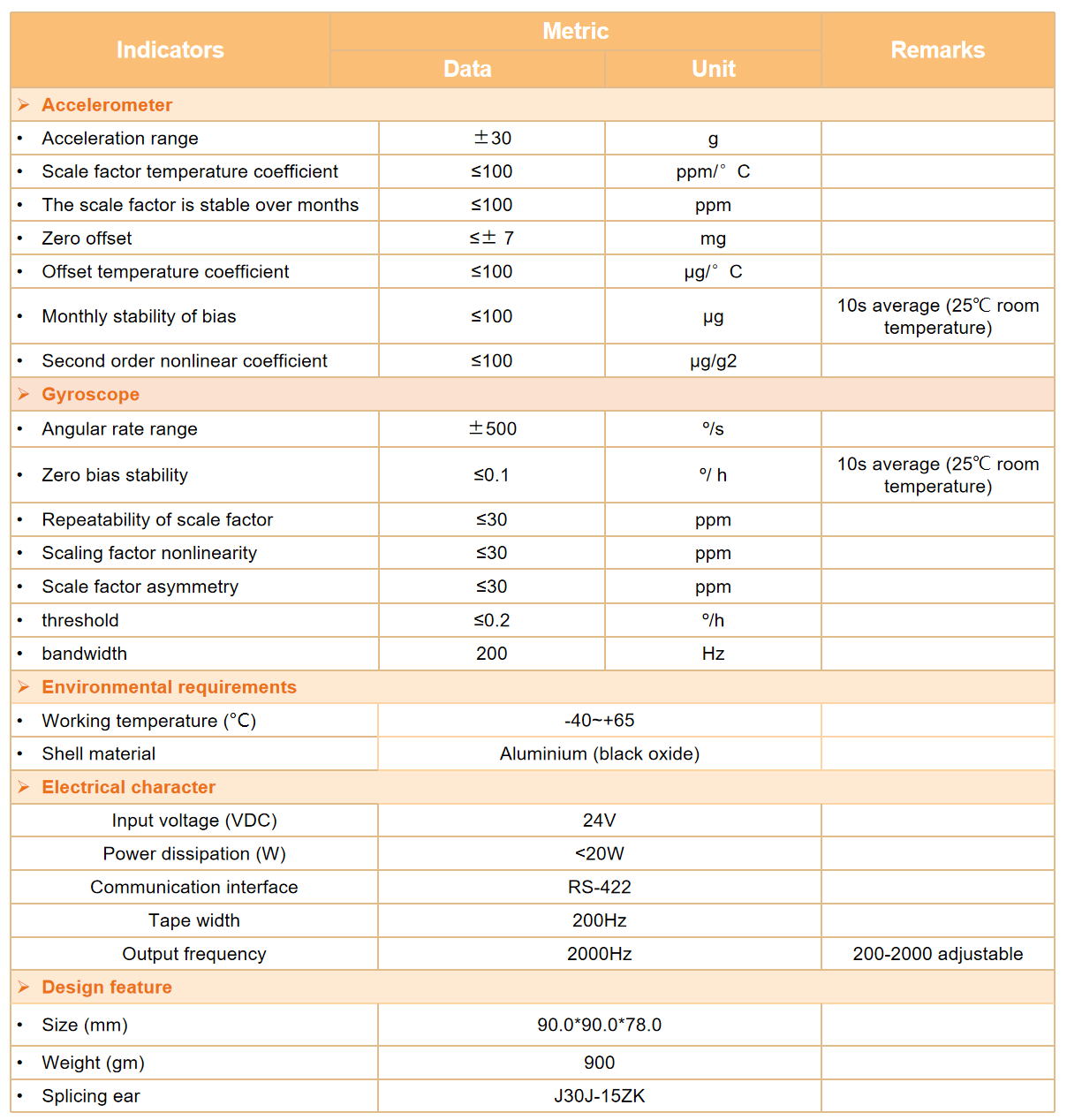

Parameters
