LINS688B High Precision Inertial Measurement Unit
关键词:
Category:
key word: LINS688B High Precision Inertial Measurement Unit
Details
LINS688B is a small volume, overload resistance of strong inertial measurement unit. It can be used for the precise navigation, control, and dynamic measurement of the carrier. The product uses the high-precision MEMS inertial device, has high reliability and high hardness, and has the ability to accurately measure the angular speed and acceleration information of the mobile carrier in the harsh environment.
LINS688B built-in three-axis gyroscope and three-axis accelerometer are used to measure the triaxial angular rate and triaxial acceleration of the carrier. The gyroscope and accelerometer data after error compensation (including temperature compensation, non-position compensation, misalignment angle compensation, nonlinear compensation, etc.) are output through the serial port according to the agreed communication protocol.
Main features:
√ Products design aimed for high reliability ，Effective researching and development for adaptiveness.
√ Specialized manufacturing equipment and devices, Rigorous procedure and quality assurance.
√ Dedicated to deliver high quality products to our clients.
√ Years of experiences in perfecting our products , positive feedback from over a thousand users.
√ Cutting-Edge calibration technology,fast and professional customer support.
√ Prioritize in providing satisfactory services.
▪ High-precision MEMS equipped with 3-axis accelerometer, 3-axis gyroscope ， 3-axis magnetometer and a digital barometer
▪ Range: Acce ± 20g, Gyro ± 450°/s
▪ Communication interface: SPI
▪ High output frequency: 2,000 Hz
▪ Operating temperature: -40°C ~ +85°C
▪ Small size: 44 * 47 * 14mm
Typical applications:

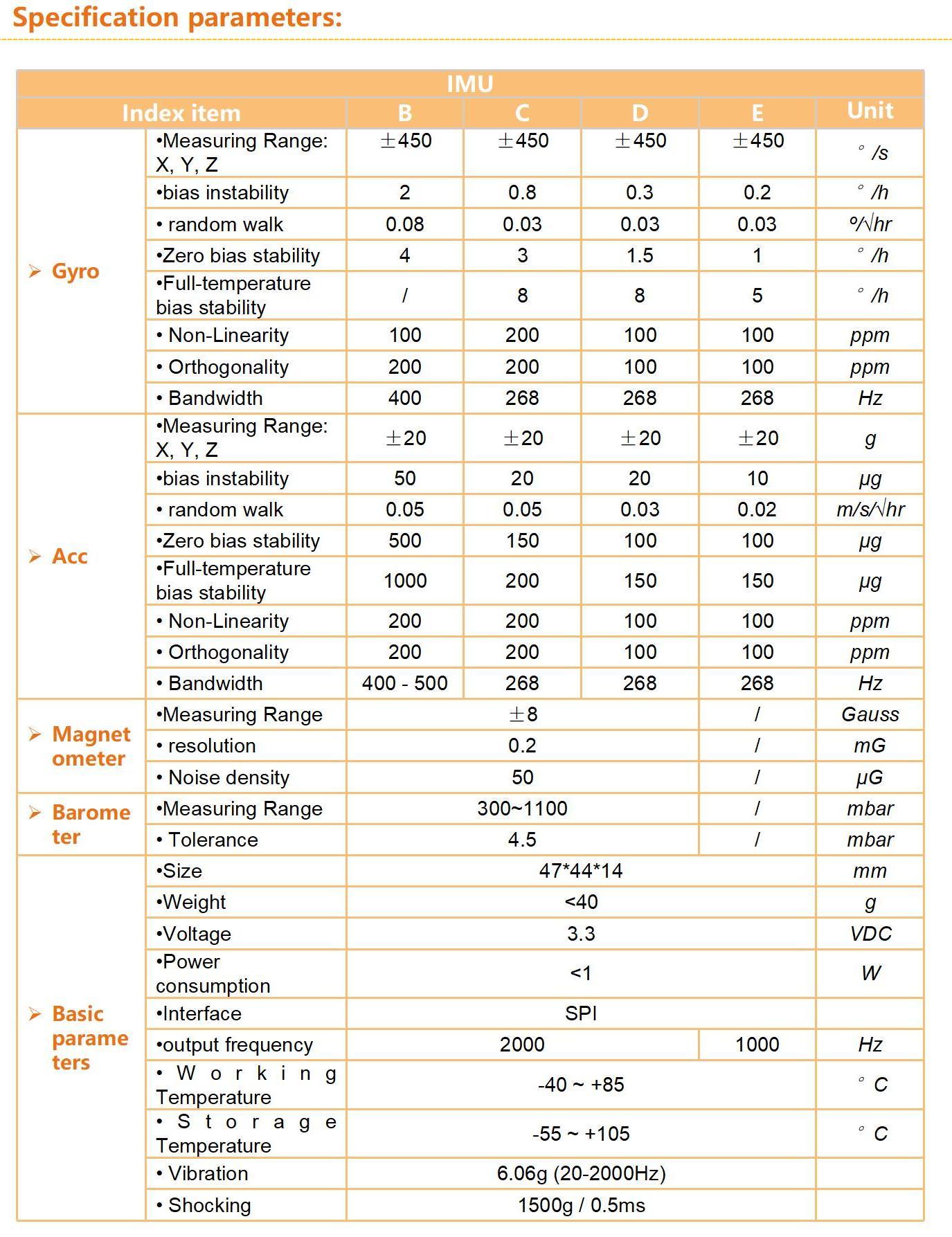

Product indicators：
|
Technical Index |
Design accuracy |
Remark |
|
|
Gyroscope |
Accelerometer |
||
|
IMU Parameter |
|||
|
• Dynamic measuring range: X, Y, Z |
±450°/s |
±20g |
|
|
• Zero bias instability |
1.2°/h |
20μg |
Allan variance |
|
• Random walk |
0.08°/√ h |
0.033m/s/√ h |
|
|
• Zero bias stability |
4°/h |
0.5mg |
10s average |
|
• Scale factor nonlinearity |
100ppm |
100ppm |
Acc Range： ±1 g |
|
• Alignment error |
200ppm |
200ppm |
|
|
• Bandwidth |
480Hz |
500Hz |
|
|
• Output Data Rate |
2000Hz |
|
|
|
Magnetometer |
|||
|
• Dynamic Range |
±8Gauss |
|
|
|
• Resolution |
0.2mG |
|
|
|
• Nonlinear accuracy |
0.1%FS |
|
|
|
Barometer |
|||
|
• Pressure Range |
300~1100mbar |
|
|
|
• Total Error |
4.5mbar |
|
|
|
Electrical characteristics |
|||
|
• Voltage |
3.3V DC |
|
|
|
• Power consumption |
1W |
|
|
|
• Communication interface |
SPI |
115200~921600 bps configurable |
|
|
Structural characteristics |
|||
|
• Size |
44 * 47 * 14mm |
|
|
|
• Weight |
40g |
|
|
|
Use environment |
|||
|
• Operating temperature |
-40°C ~ +85°C |
|
|
|
• Storage temperature |
-55°C ~ +105°C |
|
|
|
• Vibration |
6.06g（ 20-2000Hz） |
|
|
|
• Impact |
1500g / 0.5ms |
|
|
