LINS-F3X70 Three-axis fiber optic gyroscope
关键词:
Category:
key word: LINS-F3X70 Three-axis fiber optic gyroscope
Details
Fiber optic gyroscope, as a new type of all solid state gyroscope, has the advantages of fast start-up, wide measurement range, and high reliability.
LINS-F3X70 three-axis fiber optic gyroscope can meet the requirements of medium to high-precision application backgrounds. It adopts three-axis shared technology and split design, with low cost and stable performance. Structurally, it adopts an integrated packaging of optical path and circuit, with a simple structure and easy installation. It can be applied to navigation guidance, attitude measurement and control systems for small missiles and guided bombs.
Main features
▪ High precision three-axis fiber optic gyroscope
▪ Range：±500°/s
▪ Zero bias stability：≤0.2 °/h
▪ Size：70 x 70 x 45 (mm)
▪ Weight：400 ± 50g
▪ Working temperature：-40°C to +65°C
√ 12 step quality control, super reliable, with more features
√ Using original branded parts, high-quality materials, and competitive prices
√ True and accurate after calibration, with perfect performance
√ Successful applications in dozens of fields, with over 1000 customers currently using them
Typical applications

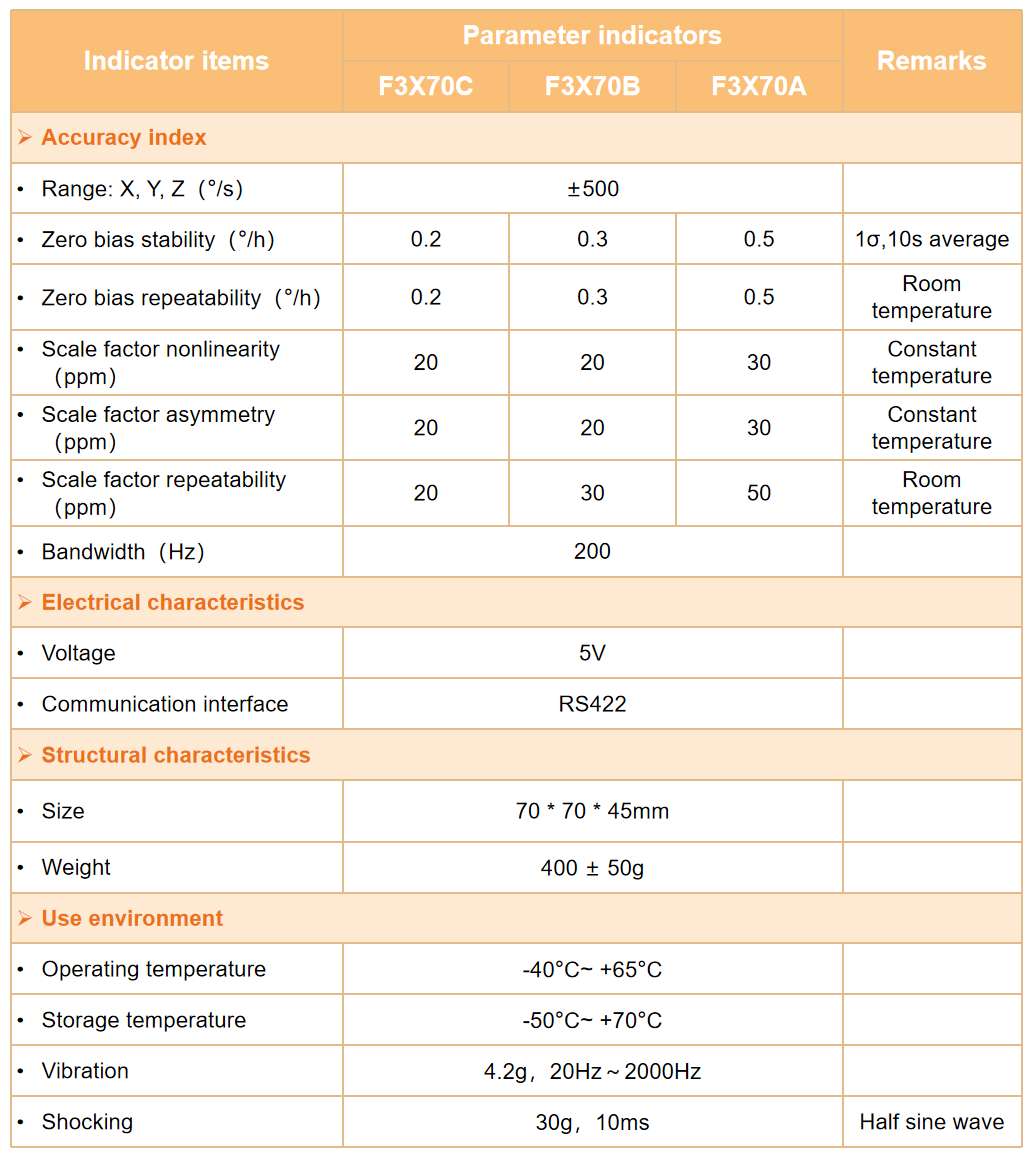

Parameters
|
Indicator items |
Parameter indicators |
Remarks |
||
|
F3X70C |
F3X70B |
F3X70A |
||
|
Accuracy index |
||||
|
Range: X, Y, Z（°/s） |
±500 |
|
||
|
Zero bias stability（°/h） |
0.2 |
0.3 |
0.5 |
1σ,10s average |
|
Zero bias repeatability（°/h） |
0.2 |
0.3 |
0.5 |
Room temperature |
|
Scale factor nonlinearity（ppm） |
20 |
20 |
30 |
Constant temperature |
|
Scale factor asymmetry（ppm） |
20 |
20 |
30 |
Constant temperature |
|
Scale factor repeatability（ppm） |
20 |
30 |
50 |
Room temperature |
|
Resolution（°/s） |
0.5 |
|
||
|
Bandwidth（Hz） |
200 |
|
||
|
Electrical characteristics |
||||
|
Voltage |
5V |
|
||
|
Communication interface |
RS422 |
|
||
|
Structural characteristics |
||||
|
Size |
70 * 70 * 45mm |
|
||
|
Weight |
400 ± 50g |
|
||
|
Use environment |
||||
|
Operating temperature |
-40°C~ +65°C |
|
||
|
Storage temperature |
-50°C~ +70°C |
|
||
|
Vibration |
4.2g，20Hz～2000Hz |
|
||
|
Impact |
30g，10ms |
Half sine wave |
||
